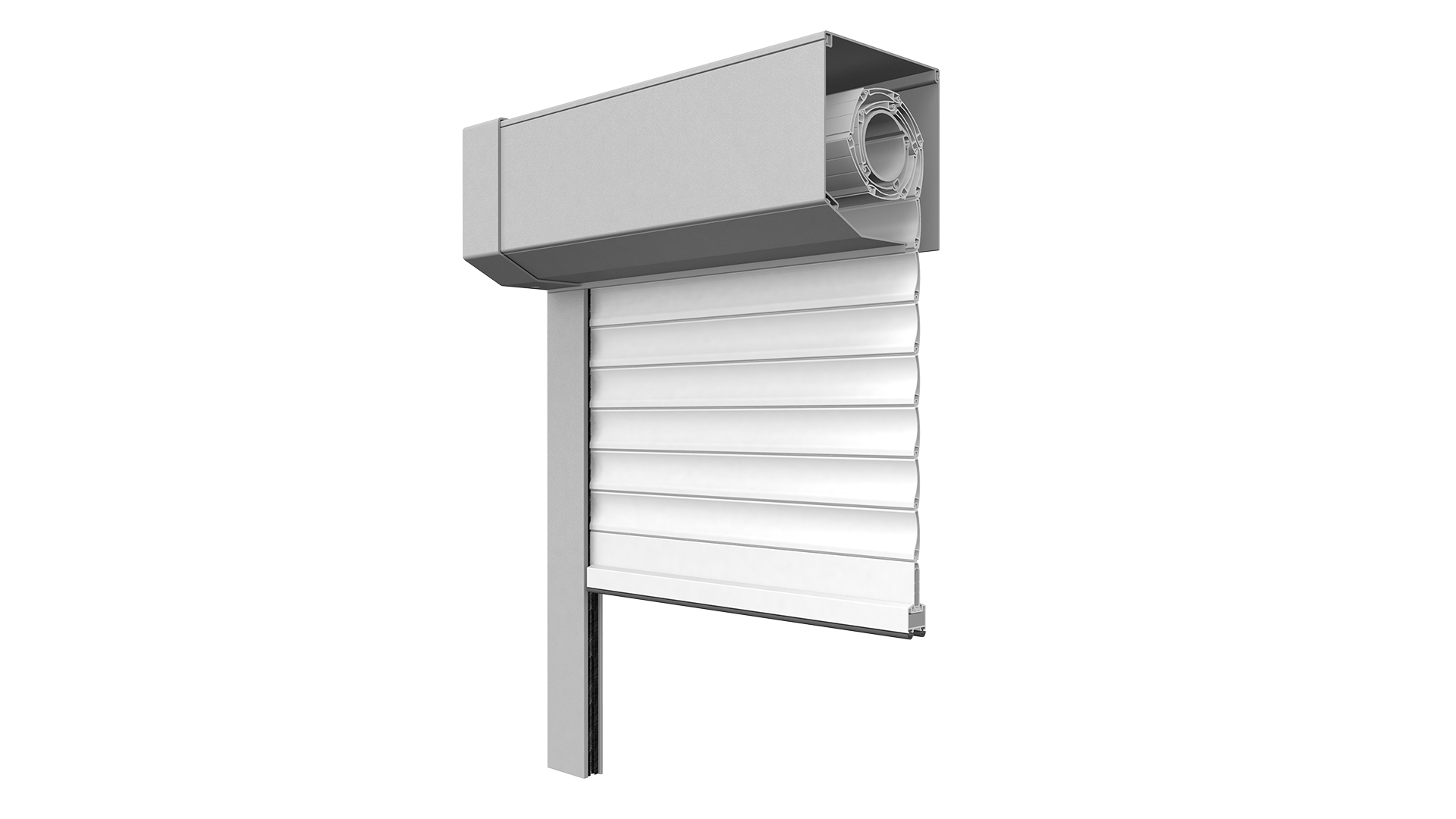

Front-mounted roller shutter, extruded

nova front-mounted roller shutter extruded - Top-Safe

The burglar-resistant HELLA Top-Safe front-mounted roller shutter puts a stop to burglars thanks to innovative security details such as the reinforced design of the roller shutter profiles, end bar, guide rail and box as well as a shaft with patented anti-lift device. The fastening elements for the disassembly of the element cannot be accessed when the blind is closed.

Possible panel types: Extruded aluminium S37

Colors
w-ral-7038
Colour worlds
pdf • 18.14 MB • Brochure material
Roller shutters
pdf • 6.46 MB • Brochure material
min. width 400 mm
max. width 2500 mm
max. height 3000 mm
max. blind surface 6 m²
Scroll down
Details
Types of drives
Control devices
Profile colors Roller blinds
Download
Further products
Details
w-nova-top-safe-sperre-r-sw
Lift-up protection
locks the curtain in the lower end position
w-top-safe-profil-r-002-sw

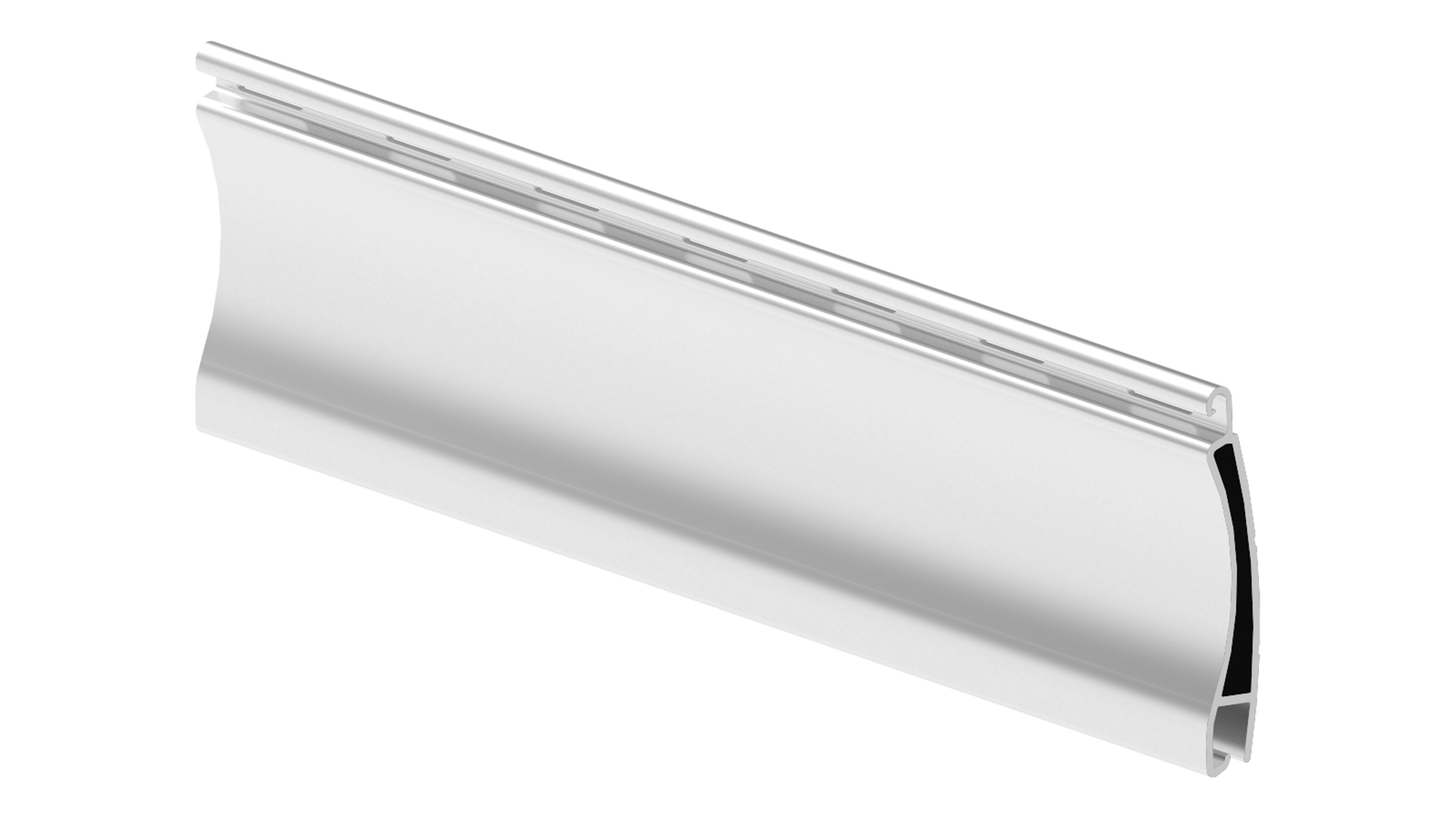

Safety profile
Aluminium profile with light slits
w-top-safe-schlussstab-r-002-sw
reinforced end rod
with double neoprene and steel insert
w-nova-top-safe-sicherheitsverschraubung-r-sw
Safety guide rail
with increased wall thickness and inaccessible mounting screws
w-top-safe-kastenverstaerkungsbuegel-r-003-sw
Box strengthening bracket
prevents the box from being opened or lifted
Types of drives
informationen-varianten-antriebsarten-motor
Motor
The unit is operated via convenient motor drive. The electric motor with integrated limit stops can be operated via control devices, hand-held radio transmitters or automatic devices, if desired.
informationen-varianten-antriebsarten-kurbel
Crank handle
Manually raising and lowering of the shading via crank handle.
Control devices
informationen-varianten-steuerungen-kabelgebunden-schalter
Wired with switch
Electronic control via switch
informationen-varianten-steuerungen-funksteuerung
Radio control
HELLA shadings can be raised or lowered at the flick of your wrist.
informationen-varianten-steuerungen-smart-home-onyx
SMART HOME ONYX
The center box ONYX.CENTER serves as interface between the smart phone and the individual control nodes and transmits radio commands bidirectionally.
Profile colors Roller blinds
Muster Vorschau am Produkt
Sample preview:
Sample preview
w-ral-7038
Standard colours Aluminium
(12)
w-hella-0003
0003 Beige
w-vsr-0110
VSR 0110
w-vsr-0330
VSR 0330
w-vsr-0780
VSR 0780
w-ral-6005
RAL 6005
w-ral-7035
RAL 7035
w-ral-8014
RAL 8014
w-ral-9006
RAL 9006
w-ral-9007
RAL 9007
w-ral-9016
RAL 9016
w-db-703
DB 703
w-ral-7016
RAL 7016
Download
Further documents on this product can be found in the download area
