Exterior Venetian blind

AF 60 - high-quality external venetian blind with strong flat slats

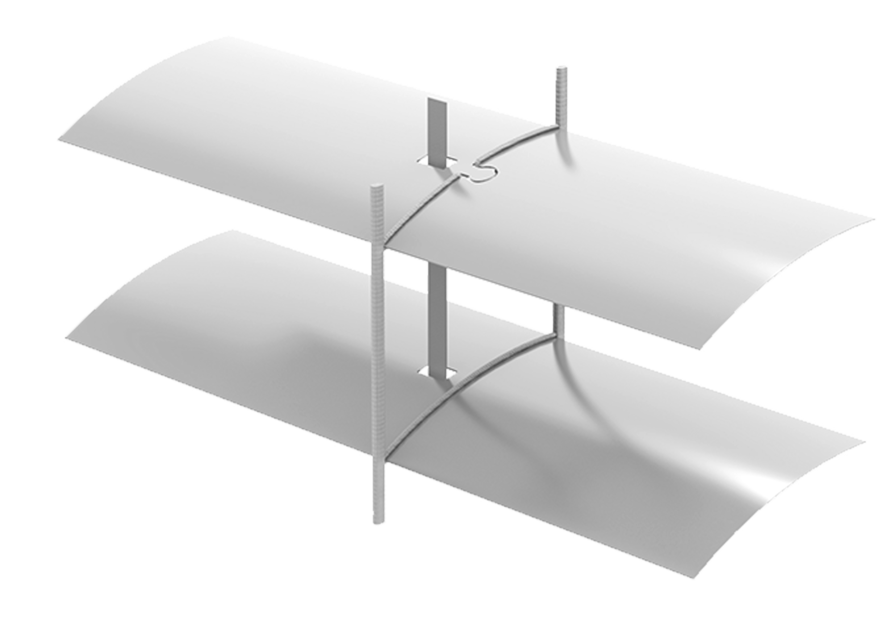

The AF 60 is provided with a low-noise wind protection, offers excellent sun, glare and view protection and has a long lifespan. The slats are connected via the clever HELLA Omega punching. This model is guided via cable or rail, and can be driven with the help of a crank handle or a motor.

Colors
w-db-703
Colour worlds
pdf • 18.14 MB • Brochure material
Outdoor blinds & venetian blinds
pdf • 6.62 MB • Brochure material
min. width 490 mm
max. width 5000 mm
max. height 4000 mm
max. blind surface 20 m²
Scroll down
Types of drives
Control devices
Slat colors Outdoor blinds & Venetian blinds
Download
Further products
Types of drives
informationen-varianten-antriebsarten-motor
Motor
The unit is operated via convenient motor drive. The electric motor with integrated limit stops can be operated via control devices, hand-held radio transmitters or automatic devices, if desired.
informationen-varianten-antriebsarten-kurbel
Crank handle
Manually raising and lowering of the shading via crank handle.
informationen-varianten-antriebsarten-funkmotor
Radio motor
The electric motor with integrated limit stops can be operated via control devices, hand-held radio transmitters or automatic devices, if desired.
informationen-varianten-antriebsarten-nothandkurbel
Emergency crank handle
A sun protection device with electric drive cannot be retracted without current. We therefore recommend the use of an emergency power generating unit or a motor with an emergency crank handle, especially in regions with frequent power failures. Emergency crank handle drives are built-in in products, which must remain operable in the event of the loss of the main power.
Solarsteuerung
Radio-controlled motor Solar
Control devices
informationen-varianten-steuerungen-kabelgebunden-schalter
Wired with switch
Electronic control via switch
informationen-varianten-steuerungen-funksteuerung
Radio control
HELLA shadings can be raised or lowered at the flick of your wrist.
informationen-varianten-steuerungen-smart-home-onyx
SMART HOME ONYX
The center box ONYX.CENTER serves as interface between the smart phone and the individual control nodes and transmits radio commands bidirectionally.
Slat colors Outdoor blinds & Venetian blinds
Muster Vorschau am Produkt
Sample preview:
Sample preview
w-db-703
Colour schemes
(8)
w-ral-7016
RAL 7016
w-ral-7035
RAL 7035
w-ral-7038
RAL 7038
w-ral-9006
RAL 9006
w-ral-9007
RAL 9007
w-ral-9016
RAL 9016
w-db-703
DB 703
w-c-33
C33/VSR 0780
Download
Further documents on this product can be found in the download area
